Wind, slopes and planning overlays in Sunbury VIC

Sunbury sits at around 300 metres above sea level, with estates on open hills and steep creek valleys between them. That exposure feeds into the wind classification under AS 4055, which sets bracing and tie-down design, and it can differ between a sheltered street and a hilltop lot. Some lots on the bushland fringe may also carry a bushfire overlay with a BAL rating. None of this should be assumed from the suburb: your engineering and your planning property report state the figures for your block.

Wind classification

Set for each lot by the engineer under AS 4055. Exposed hilltop lots may carry a higher class than sheltered ones.

Why it matters at frame

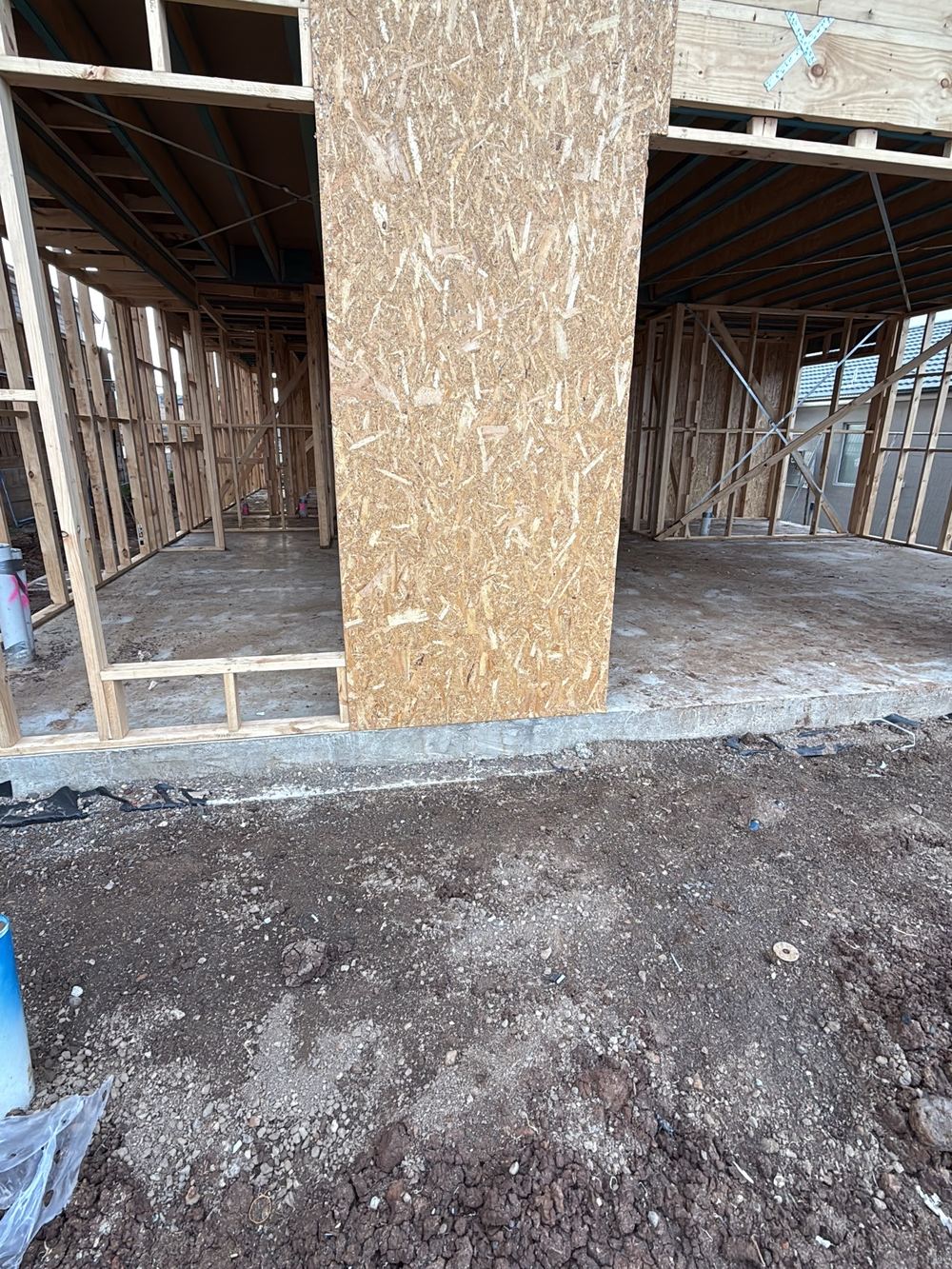

A higher wind class means more bracing and stronger tie-downs. Our frame inspection checks both against the engineering.

Slopes and retaining walls

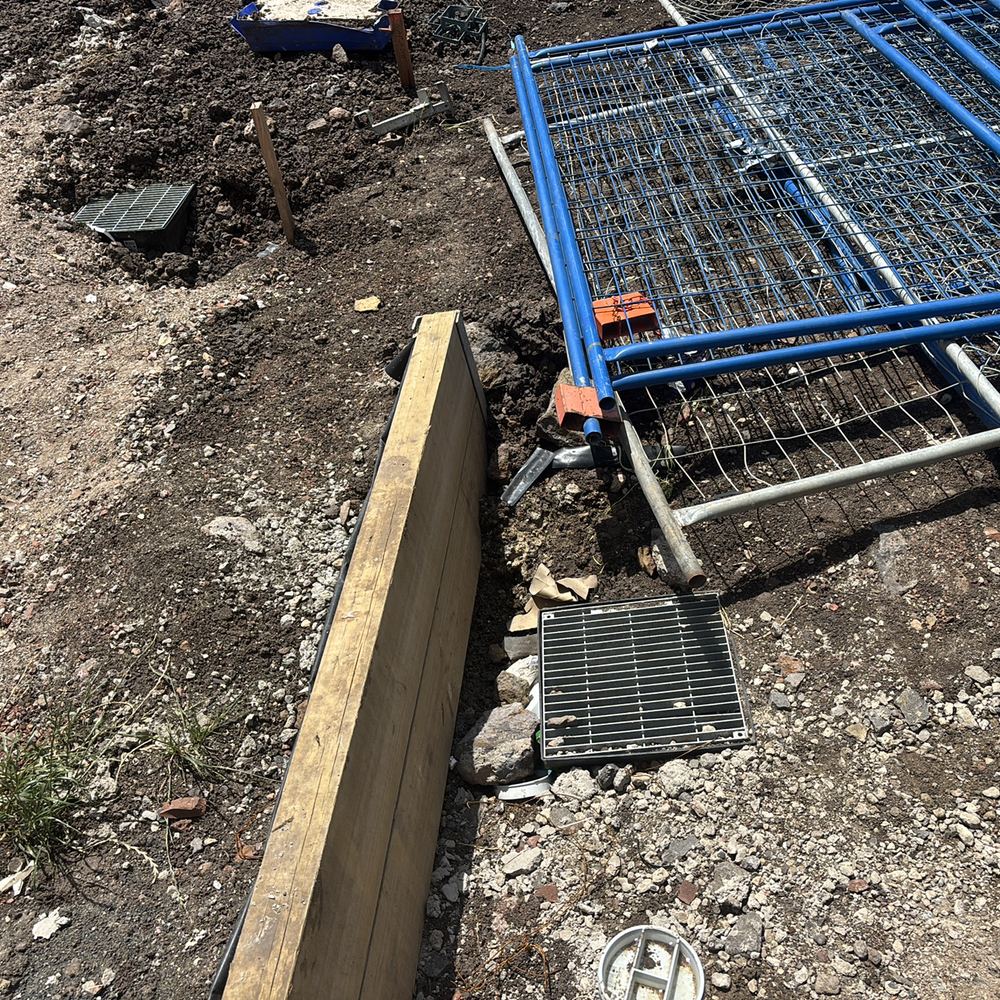

Sloping lots bring retaining walls, which need drainage behind them. We have found agricultural drains missing at fixing stage.

Bushfire overlays

Some fringe lots may sit under a Bushfire Management Overlay. If yours does, the BAL rating affects windows, decks and cladding.

Where to check

The VicPlan planning property report lists overlays for your address, and the engineering states the wind class.

More about Sunbury

Written by our local inspection team from work carried out in Sunbury. Licensed building practitioners, Building & Plumbing Commission registration CDB-U 53425.

Guides for Sunbury owners and buyers

19 February 2026 · 6 min read

Lintel tie-downs on a Sunbury frame

Why the beams over your windows need their own fixings, and what we found missing.

26 March 2026 · 5 min read

Slab beams narrower than drawn

How loose waffle pods shrink the beams in a Sunbury slab, and how to catch it.

14 May 2026 · 5 min read

Roof penetrations and wall wrap at lock-up

The water details that close over at a Sunbury lock-up, and the ones we keep finding open.

Wind, slopes and planning overlays in Sunbury VIC: common questions

What wind rating is Sunbury?

It depends on the lot. Your engineering states the AS 4055 classification, and exposed sites can differ from sheltered ones.

Is Sunbury in a bushfire zone?

Some fringe lots may be under a Bushfire Management Overlay. Check the planning property report for your address.

Do you check retaining wall drainage?

Yes, where it is visible. A missing agricultural drain behind a retaining wall is recorded as a defect.
